RCF HDL30-A RDnet Aktiv Line Array Högtalare

Beskrivning

Från tillverkaren:

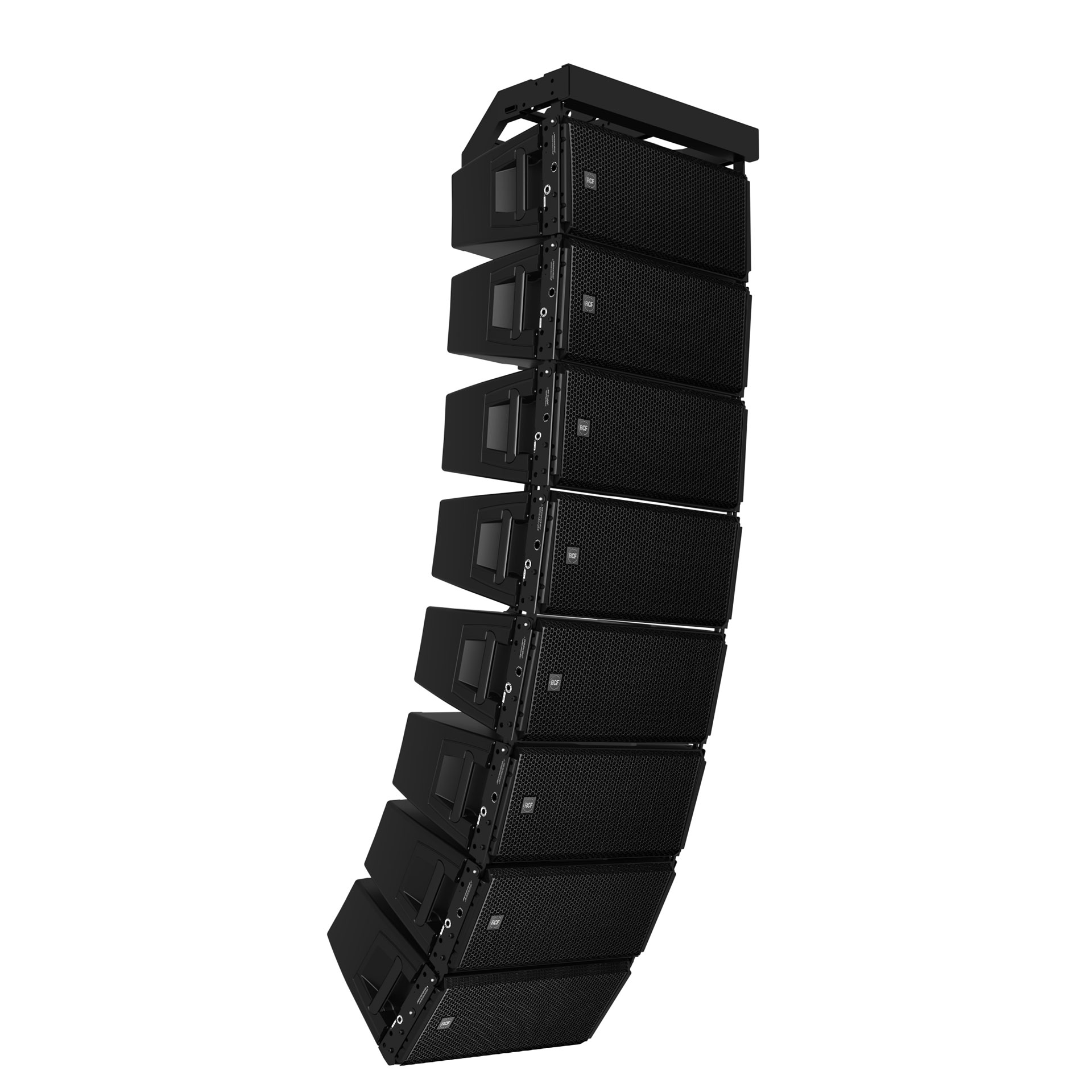

The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors.
It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design.
HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response.
The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max.
The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets.
Considering its acoustical power, it has a remarkably low weight for easy handling and flying.

SPECIFICATIONS

Acoustical specifications

Frequency response: 50 Hz ÷ 20000 Hz

Max SPL @ 1M: 137 dB

Horizontal coverage angle: 100°

Vertical coverage angle: 15°

Transducers

Compression driver: 1 x 1.4” neo, 4.0” v.c

Woofer: 2 x 10” neo, 2.5” v.c

Input/Output section

Input signal: bal/unbal

Input connectors: XLR, RDNet Ethercon

Output connectors: XLR, RDNet Ethercon

Input sensitivity: +4 dBu

Processor section

Crossover frequencies: 680 Hz

Protections: Thermal, RMS

Limiter: Soft Limiter

Controls: Preset, RDNet bypass

RDNet: Yes

Power section

Total power: 2200 W Peak, 1100 W RMS

High frequencies: 600 W Peak, 300 W RMS

Low ferquencies: 1600 W Peak, 800 W RMS

Cooling: Forced

Connections: Powercon IN/OUT

Standard compliance

CE marking: Yes

Physical specifications

Cabinet/case material: PP Composite

Hardware: Array fittings

Handles: 2 Side

Grille: Steel

Color: Black

Size

Height: 293 mm / 11.54 inches

Width: 705 mm / 27.76 inches

Depth: 502 mm / 19.76 inches

Weight: 25 kg / 55.12 lbs
