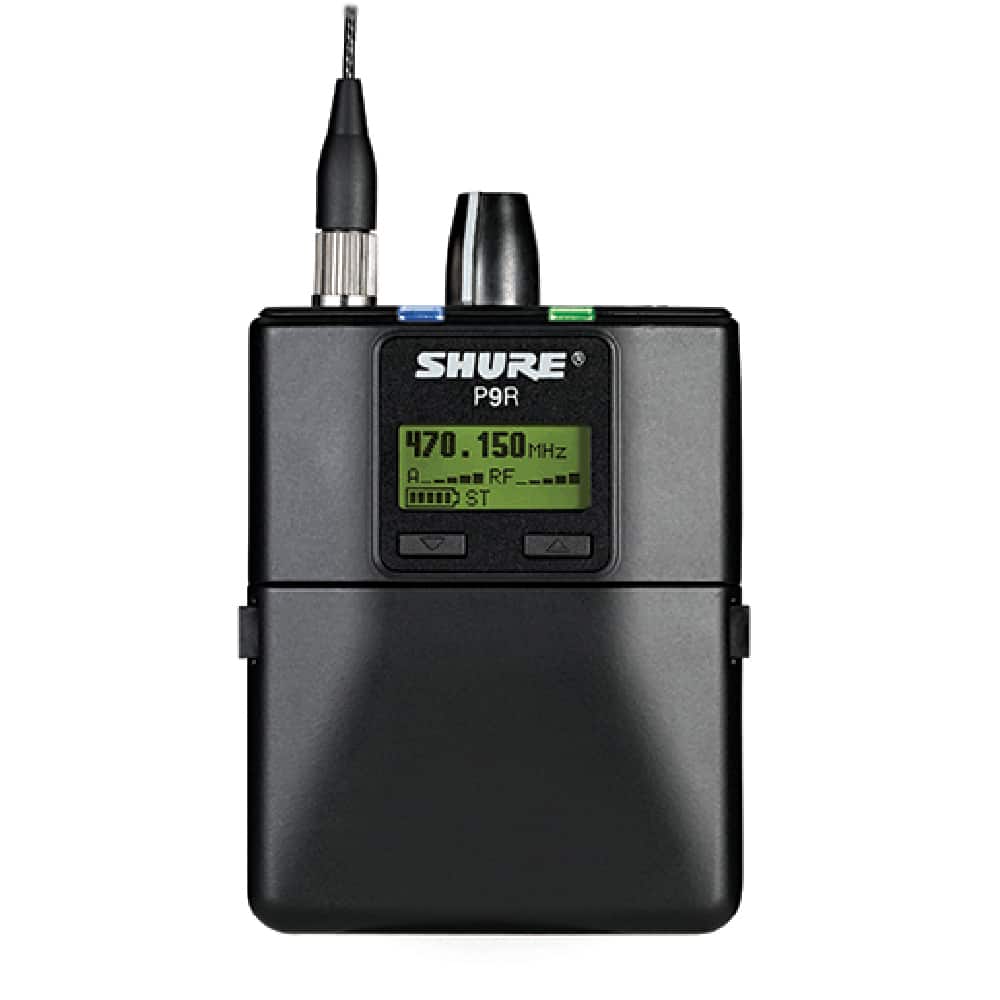

The P9R from Shure is a professional-quality wireless stereo bodypack receiver
designed to be used as part of a PSM900 wireless personal monitoring system.
The receiver has a slim and compact extruded aluminum construction for easy placement on a performer and lasting durability.
The receiver has an enhanced digital stereo encoder to provide excellent audio clarity and detail.
RF scan and automatic gain features provide excellent RF stability and channel availability,
and prevent dropout due to RF overload. Output power is switchable from 10/50/100mW to provide a robust link in any environment.
Modulation: FM, MPX Stereo
Operating Range: 300′ (90 m)
Frequency Response: 35Hz – 15kHz
Signal to Noise Ratio: 90dB
RF Sensitivity: 2.2µV
Filter: -3dB @ 30.5MHz, Front-End RF Filtering
Gain Control: 31dB
Image Rejection: > 100dB
Adjacent Channel Crosstalk: > 70dB
Squelch: 22dB SINAD
Intermodulation Distortion: > 70dB
Load Impedance: 9.5 Ohms
Output Power: 10/50/100mW, Selectable
1 x 3.5mm Headphone Jack
1 x Antenna Connector
Battery Type/Life: 2 x AA, Approx 5-7 Hours
Dimensions: 3.3 x 2.6 x 0.9″ (83 x 65 x 22mm)
Weight: 7.05 oz (200g) (With Batteries)
